In busy warehouses, factories, and logistics centers, forklifts often work close to people, shelves, machines, and stored goods. Even when drivers are trained, blind spots and narrow aisles can still create safety risks. Workers may not notice a moving forklift in time, especially in noisy areas or low-light spaces.
This is why many facilities are adding a Forklift Boundary Light to their vehicles. Instead of only using sound alarms or small warning lamps, this type of light projects a clear safety boundary onto the floor around the forklift. The visible line helps workers understand the danger zone before they get too close.
A Safety Warning Line Projector is especially useful because it turns the moving forklift into a more visible machine. The warning line moves with the vehicle, so workers can quickly see where the safe distance should be. For warehouses with heavy traffic, shared aisles, or frequent loading work, this simple visual signal can make daily operations much safer.
What Is a Forklift Boundary Warning Light?
A forklift boundary warning light is a vehicle-mounted safety light that projects a visible line, arc, or dot pattern onto the floor. It is usually installed on the front, rear, left side, right side, or top frame of the forklift, depending on the warning area needed.
Unlike painted floor markings, the projected boundary moves with the forklift. This is important because the risk area changes whenever the vehicle moves, turns, reverses, or enters a narrow aisle.
Noparde provides industrial vehicle safety lighting solutions designed for warehouses, workshops, factories, and logistics environments. Its forklift boundary lights can be used to create red or blue projected warning zones around moving equipment, helping workers notice the forklift earlier and keep a safer distance.
Three Common Projection Types
Forklift boundary lights usually come in three main projection types: straight line, U-shaped arc, and dot pattern. Each one has a different use, and many facilities choose a combination based on their working space.
Straight Line Type
The straight line type projects a clear line on the floor. It is often used on the left and right sides of the forklift to show side boundaries.
This setup is helpful in narrow warehouse aisles, loading zones, and areas where pedestrians may walk close to moving vehicles. A straight red or blue line gives workers a clear visual limit. If they see the line, they know they are near the forklift’s working area and should stay alert.
Straight line lights are one of the most commonly used options because they are easy to understand and work well for side protection.
U-Shaped Arc Type

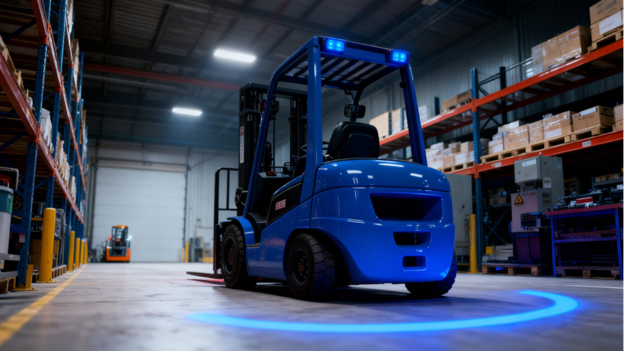

The U-shaped or semi-circle type projects a curved warning area in front of or behind the forklift. It is often used to show the turning or reversing danger zone.
For example, one U-shaped light can be installed at the front of the forklift and another at the rear. This creates a clear curved safety area in the direction where the vehicle may move. In many warehouses, U-shaped lights are very popular because they give workers a wider visual warning than a single straight line.
A Forklift Safety Light with a U-shaped pattern can be useful when workers need to see not only where the forklift is, but also the space around it that should stay clear.
Dot Pattern Type
The dot pattern type projects bright points on the floor, usually behind or around the forklift. It can be used to warn pedestrians when the vehicle is reversing or moving in tight spaces.
Compared with straight lines and U-shaped arcs, dot patterns are usually used less often. They are more suitable for specific warning needs, such as rear movement alerts or extra visibility in certain areas. For full boundary marking, most facilities still prefer straight line and U-shaped projection.
Red or Blue: Which Color Should You Choose?
Forklift boundary lights are commonly available in red and blue. Both colors are easy to notice, but they may be used in different ways depending on the facility.
Red is often used when the company wants a stronger warning signal. It naturally suggests danger, restricted distance, or “do not enter this zone.” Red works well in areas where workers must keep away from the forklift body, wheels, forks, or turning space.
Blue is also widely used in warehouses and factories. It is bright, clean, and easy to see on many industrial floors. Some facilities choose blue because it stands out better under their lighting conditions, while others use blue to reduce visual fatigue in areas that already have many red warning signs.
Many companies use red and blue together. For example, red may be used for side boundaries, while blue may be used for front or rear warning zones. The best choice depends on floor color, lighting, traffic flow, and internal safety standards.
How Forklift Boundary Lights Are Combined
One of the biggest advantages of a Forklift Boundary Light is that it can be used alone or combined with other lights.
For full four-side protection, a forklift may use four units: front, rear, left, and right. One common setup is to install U-shaped semi-circle lights at the front and rear, then use straight line lights on the left and right sides. Together, they create an oval or racetrack-shaped safety boundary around the forklift.

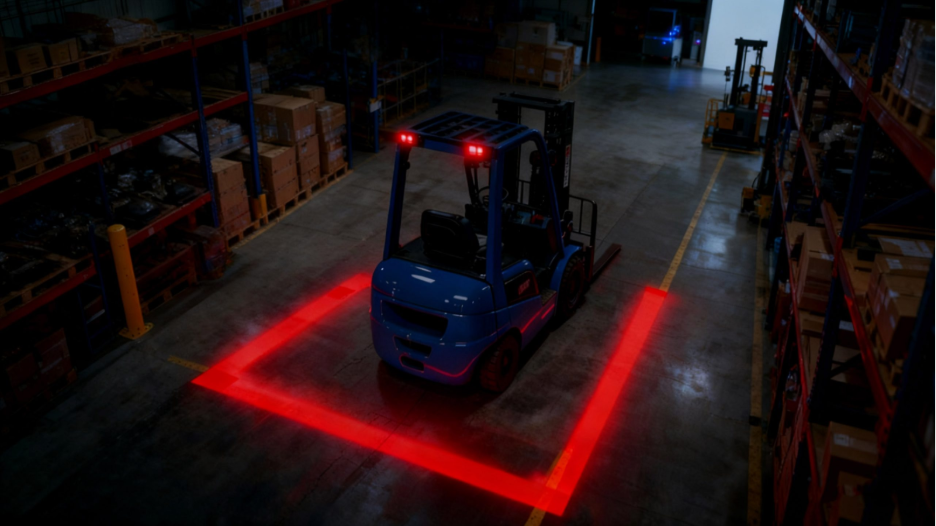

Another option is to use four straight line lights on all sides. This creates a square or rectangular warning zone around the vehicle. This setup is simple, clear, and useful when a facility wants a fixed visual distance around the forklift.
In many real working sites, companies may not need four lights on every forklift. A three-light combination is also common. For example, one U-shaped light can be used at the rear, with two straight line lights on the sides. Some facilities may also install only one U-shaped light or one straight line light, depending on the main risk area.
This flexibility makes a Safety Warning Line Projector practical for different forklift models, warehouse layouts, and safety budgets.
Why Vehicle-Mounted Boundary Lights Improve Safety
Forklifts often move through areas where painted safety lines cannot solve every problem. Floor markings show fixed routes, but they do not show the live danger zone around a moving vehicle.
Vehicle-mounted warning lights solve this problem by creating a moving visual boundary. Workers can see the warning area before the forklift reaches them. Drivers also gain more confidence because people nearby are more likely to notice the vehicle.
These lights are useful in many situations:
Warehouses with narrow aisles and tall racks.
Loading docks with frequent vehicle movement.
Factories where forklifts share space with workers.
Logistics centers with many intersections and blind corners.
Workshops where machines, materials, and vehicles are close together.
In these environments, a Forklift Safety Light can help reduce close-contact risks and make traffic flow easier to understand.
Noparde Forklift Safety Lighting Solutions
Noparde focuses on industrial projection and safety warning lighting products for real working environments. The company understands that forklift safety is not only about adding a lamp. It is about making the vehicle easier to see, making the danger zone easier to understand, and helping workers react faster.
Noparde forklift boundary warning lights are designed for industrial use, with red and blue color options and multiple projection patterns. Facilities can choose straight line, U-shaped semi-circle, or dot projection based on their safety needs.
For many warehouses, the most practical solution is a combination of U-shaped and straight line projection. For example, front and rear U-shaped lights can show the forklift’s moving range, while left and right straight lines can mark the side distance. This creates a clear, easy-to-read safety zone around the vehicle.
Final Thoughts
Forklift safety depends on visibility, distance, and fast reaction. A projected warning boundary helps workers see the forklift’s danger zone before they get too close.
Straight line lights are useful for side boundaries. U-shaped lights are ideal for front and rear warning zones. Dot lights can provide extra alerts for reversing or special movement areas. Red and blue options allow facilities to choose the color that works best for their floor conditions and safety rules.
For warehouses, factories, and logistics centers that want a clearer and more flexible forklift warning system, Noparde provides practical vehicle-mounted projection solutions that help create safer movement around every forklift.
